Sale!
Description
Nube iO Starter Pack contains:
- 1x Rubix Compute
- 1x Rubix IO16
- 1x Power Supply
- 1x Droplet Sensor – Temperature + Humidity

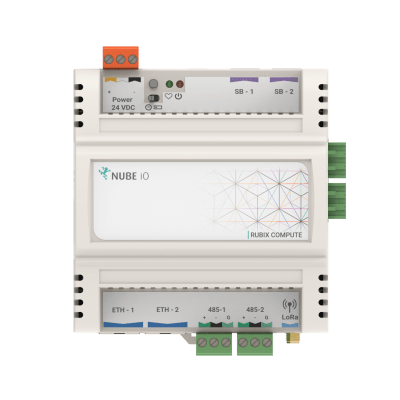

Rubix Compute
This IoT multi-gateway will collect data from both wired and wireless devices. It will enable you to aggregate data from multiple sensors and send it anywhere – your cloud, a local server, or 3rd-party hardware.
One Gateway, multiple data types
Rubix Compute is a one of a kind IoT gateway that aggregates all types of building data, removing the frustration of running multiple gateways in one solution.
- Integrate into any BMS
- Receive wireless signals
- LoRa® & LoRaWAN®
- Convert Modbus & BACnet to wireless
- RS485 – BACnet and Modbus configurations. Run as a master, slave or gateway to a 3rd-party device
- One device – Multiple configurations
RUBIX IO
Rubix IO is a series of low-cost IO modules that can communicate wirelessly. This means no more frustrations of cabling in legacy automation solutions. Monitor your HVAC, power, and water usage.
Physical Specs
- Processor: 32-bit ARM Cortex-M microcontrollers
- OS Software: Mbed OS, ARM mbed
- Other software: C++ mbed environment
- Mounting: Din Rail Enclosure
- IO: 10 IO
- Size: 112*65*56mm H/W/D
- Protection Level: IP40
- Power Supply: 24VAC +/- 3% or 24VDC +10%/-10%, Consumption 50 mA
- Material: ABS Plastic
- Inputs and Outputs: 4 universal outputs, 6 universal inputs
Wireless or wired communications
- Set up as LoRaWAN® remote IO module or RS485 IO Module
- Plug and play – add extra modules for low-cost Communications and IO as required
- Seamless integration – Integrate wireless IoT devices into an existing BMS system
- LoRa®, LoRaWAN®, Zigbee and More (some frequencies limited to OEM) integrate into existing systems via Modbus or BACnet
Droplet Sensor (Wireless)
- Scalable environmental sensor with low-cost deployment and seamless installation
- LoRa® is a low-power, long-range wireless technology designed for the Internet of Things
- It is less affected by buildings and other obstructions than regular WiFi, with one gateway generally being able to provide coverage for a 70x70m 3-story building
- LoRa® is expected to hold 75% of the IoT device market share soon. The LoRa® community is expanding rapidly, with many new contributions and developments occurring every day.
Benefits
- Significantly longer range than for Bluetooth and WiFi
- Drastically lower power consumption than for Bluetooth, WiFi, or 4G
- AES128 encryption
- Excellent penetration through obstacles
- Highly versatile application, which translates into easier integration
