Wireless Temperature Humidity Light/Lux Motion sensor used on the LoRa network. Up to 10 years of service on a single tri-battery life.
Description
LoRa® capabilities
- Supported Frequencies: 868/915Mhz
- Spreading Factor 6-12
- Bandwidth 7.8 – 500 kHz
- Effective Bitrate .018 – 37.5 kbps
- Est. Sensitivity -111 to -148 dBm
Sensor specifications
- Temperature sensor: @25°C ± 0.5°C, from 0…65°C ±1°C
- Humidity Sensor: -40°C -> 85°C, Resolution .008 %RH
- Light Sensor: Range of 1 – 65535lx
- Motion Sensor:
Introducing the Droplet LoRa Raw Temp/Humidity sensor, a wireless IoT sensor built to capture multiple points of data with minimal installation and wiring time. This LoRa technology operates on low power and supports frequencies of 868/915Mhz. With spreading factors of 6-12 and bandwidth of 7.8-500 kHz, it provides an effective bitrate of .018-37.5 kbps. The Droplet LoRa sensor is equipped with a temperature sensor accurate to within ± 0.5°C and a humidity sensor with a resolution of .008 %RH. Additionally, it has a light sensor with a range of 1-65535lx. The Droplet LoRa sensor is an ideal choice for reliable and secure communication of information to the receiver, with excellent penetration through obstacles and low power consumption.
Needs to use a Rubix Compute as a Lora Reciever
LoRa IoT sensor, which has been built to address the problem of wanting multiple points of data capture with minimal time for install and wiring. LoRa wireless IoT sensor technologies requires less power, meaning it can be battery powered using AA batteries. This technology is more reliable in communicating information to the receiver than regular WiFi. As sensors are wireless, Nube iO droplets can be easily installed on any surface to collect multiple data points. The receiver then aggregates, interprets, and sends this information over to a local or cloud server
WHY LORA
LoRa® is a low-power, long-range wireless technology designed for the Internet of Things. It is less affected by buildings and other obstructions than regular WiFi, with one gateway generally being able to provide coverage for a 70x70m 3-story building.
LoRa® is expected to hold 75% of the IoT device market share soon. The LoRa® community is expanding rapidly, with many new contributions and developments occurring every day.
- Significantly longer range than for Bluetooth and WiFi
- Drastically lower power consumption than for Bluetooth, WiFi, or 4G
- AES128 encryption
- Excellent penetration through obstacles
- Highly versatile application, which translates into easier integration

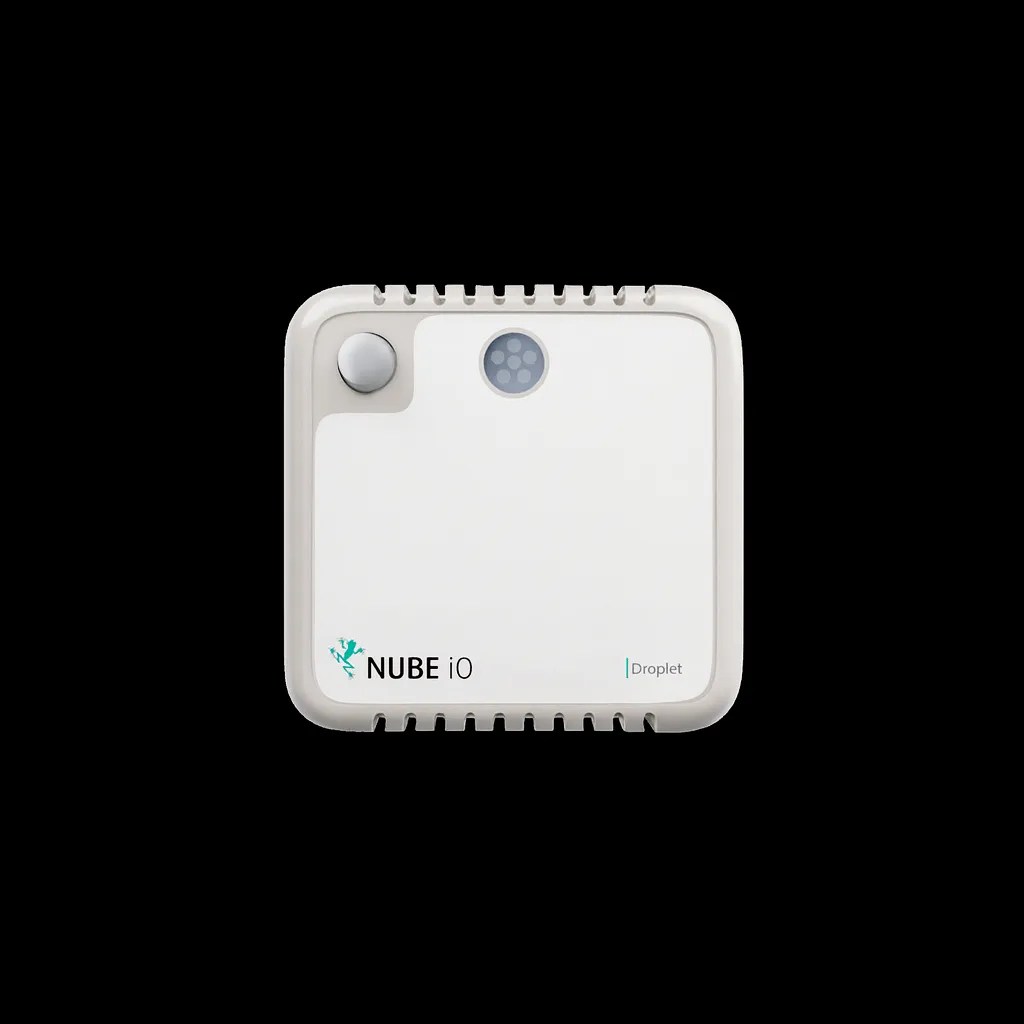

The Droplet is a LoRa® IoT sensor. It captures multiple points of data – temperature, humidity, lux, and motion monitoring – with minimal time required for installation and wiring.
